Benefits of Spray Lining for Drain Rehabilitation

Updated: 4 September 2026

Spray Lining for Drains Explained: Trenchless Pipe Rehabilitation Without Major Excavation

Spray lining is a trenchless pipe rehabilitation method where a specialist resin or coating system is applied to the internal surface of an existing pipe.

Rather than excavating and replacing the entire pipe, the internal surface is cleaned, prepared and coated to restore or protect the existing drainage where the pipe condition and application are suitable.

Spray lining is different from CIPP or UV drain lining because it generally creates a bonded internal coating rather than installing a separate cured liner or sleeve inside the host pipe.

For damaged underground drainage, AJS Environmental uses a survey-led approach to determine whether cleaning, patch repair, UV drain lining, robotic cutting or another repair method is most appropriate.

How Does Spray Lining Work?

The basic principle is to create a bonded protective layer on the inside surface of the existing pipe.

The exact process varies according to the product and application system, but generally includes inspection, preparation, application and curing.

What Materials Are Used for Spray Lining?

Spray lining systems can use different resin and coating technologies depending on the application.

These may include:

• Epoxy systems
• Polyurethane systems
• Polyurea systems
• Other specialist resin coatings

The correct material depends on factors such as:

• Pipe material
• Pipe condition
• Drainage use
• Temperature
• Chemical exposure
• Moisture conditions
• Required cured thickness
• Manufacturer specification

What Problems Can Spray Lining Help With?

Spray lining can be considered where the objective is to protect or rehabilitate a suitable existing internal pipe surface.

Depending on the lining system, it may help with:

• Minor internal deterioration
• Surface corrosion
• Porous or worn internal surfaces
• Minor leakage pathways
• Surface protection
• Localised internal rehabilitation

However, spray lining should not automatically be treated as a structural replacement for every damaged drain.

What Problems Are Not Ideal for Spray Lining?

Severe structural drainage defects may require a different repair method.

Examples can include:

• Completely collapsed pipes
• Severely displaced joints
• Major deformation
• Missing pipe sections
• Large structural fractures
• Heavy root masses
• Concrete obstructions
• Significant intruding connections

These conditions may require preparation, robotic removal, CIPP/UV lining, patch repair or excavation depending on the survey findings.

What Are the Main Benefits of Spray Lining?

Reduced Excavation

One of the principal advantages of internal pipe rehabilitation is that the work can often be completed without exposing the full length of the pipe.

This can help reduce disturbance to:

• Floors
• Walls
• Roads
• Car parks
• Paving
• Landscaping
• Commercial premises

Reduced Reinstatement

Where excavation can be avoided, there may be less need to reinstate concrete, paving, roads or surrounding structures after the drainage repair.

Internal Surface Rehabilitation

Spray-applied systems can create a new protective internal surface over suitable existing pipework.

Access to Difficult Locations

Internal rehabilitation can be useful where conventional excavation would be difficult, disruptive or disproportionately expensive.

Potentially Faster Repair

Depending on the pipe condition, preparation requirements and curing system, internal lining can reduce the overall amount of civil engineering work compared with full excavation and replacement.

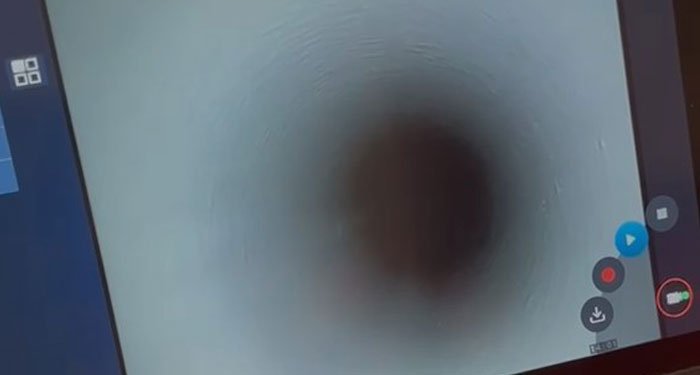

Why Is CCTV Inspection Important Before Spray Lining?

A lining decision should begin with understanding what is inside the pipe.

A CCTV drain survey can help identify:

• Pipe diameter
• Pipe material
• Cracks and fractures
• Joint displacement
• Roots
• Scale and deposits
• Concrete or foreign objects
• Deformation
• Standing water
• Structural collapse

AJS Environmental provides CCTV drain surveys to establish drainage condition before selecting the most appropriate repair method.

Why Is Cleaning So Important Before Spray Lining?

A spray-applied resin needs a suitable surface to bond to.

That means preparation may require removal of:

• Grease
• Scale
• Silt
• Loose corrosion
• Roots
• Debris
• Other surface contamination

The preparation method should be appropriate to both the host pipe and the lining material.

Spray Lining vs CIPP Drain Lining

Spray lining and CIPP are both trenchless rehabilitation methods, but they work differently.

What Is the Difference Between Spray Lining and UV Drain Lining?

UV drain lining installs a separate resin-impregnated liner inside the existing pipe and cures it using ultraviolet light.

Spray lining instead applies a coating directly to the internal pipe surface.

These are therefore two different repair approaches.

AJS Environmental’s current UV drain lining service uses CCTV inspection, cleaning, preparation, liner installation, UV curing and final CCTV verification to create a structural internal repair where conditions are suitable. :contentReference[oaicite:1]{index=1}

Spray Lining vs Patch Repair

A patch repair is a localised liner installed across a specific damaged section of pipe.

This can be useful where a single crack, joint or local defect requires structural rehabilitation but the remainder of the pipe does not require full-length lining.

Spray lining may be considered where internal surface treatment is the main objective rather than installing a structural sleeve over a specific defect.

Spray Lining vs Traditional Excavation

Is Spray Lining Cheaper Than Replacing a Drain?

It can be, but not in every case.

The total cost depends on:

• Pipe length
• Pipe diameter
• Access
• Cleaning requirements
• Surface preparation
• Repair material
• Number of applications or coats
• Curing requirements
• Site restrictions
• Alternative excavation and reinstatement costs

Trenchless methods can become particularly attractive where excavation would involve significant reinstatement or disruption.

How Long Does Spray Lining Last?

The expected service life of a spray lining system depends on the product, substrate, preparation, installation quality and operating environment.

Factors include:

• Correct resin selection
• Surface adhesion
• Cured thickness
• Pipe condition
• Chemical exposure
• Temperature
• Drainage use
• Application quality

Claims about lifespan should therefore be based on the specific lining system and manufacturer’s specification rather than applying one universal figure to every spray lining product.

Can Spray Lining Stop Leaks?

Spray lining can help seal suitable minor defects and porous internal surfaces depending on the coating system and condition of the pipe.

However, a significant fracture, displaced joint or structural failure may require a different rehabilitation method.

CCTV investigation should establish the cause and severity of the leak before the repair is chosen.

Can Spray Lining Repair Tree Root Damage?

Existing roots must first be removed.

Tree roots entering through a defective joint or crack can prevent proper surface preparation and interfere with a lining system.

After removal, the underlying defect needs to be assessed to decide whether spray lining, patch repair, CIPP/UV lining or another repair is appropriate.

Can Spray Lining Repair Concrete-Blocked Drains?

Not directly.

Concrete or other hard obstructions must first be removed before any internal lining system can be properly installed.

AJS Environmental uses specialist robotic cutting where hard intrusions such as concrete need to be removed from drainage before repair or lining.

Where Can Spray Lining Be Used?

Internal pipe coating systems can be used across different environments where the product and pipe conditions are suitable.

Applications may include:

• Domestic pipework
• Commercial buildings
• Hotels
• Restaurants
• Office buildings
• Industrial facilities
• Factories
• Plant rooms
• Other difficult-to-access pipework

The suitability should always be determined from the actual pipe condition and the requirements of the chosen lining system.

Is Spray Lining Suitable for Commercial Drainage?

It can be where the pipe condition and repair objective suit the technology.

Commercial environments can particularly benefit from trenchless rehabilitation where excavation would interrupt:

• Production
• Vehicle access
• Retail operations
• Building occupancy
• Road access
• Site logistics

However, the lowest-disruption solution is only useful if it is also the correct engineering repair.

How Do You Choose Between Spray Lining, CIPP, UV Lining and Excavation?

The decision should follow a survey-led assessment.

AJS Environmental’s No-Dig Drain Repair Approach

AJS Environmental provides a wider trenchless drainage capability including:

• CCTV drain surveys
• UV drain lining
• Patch repairs
• Drain cleaning and preparation
• Robotic cutting
• Post-repair CCTV verification

This means drainage defects can be investigated first and then matched to an appropriate repair method.

AJS’s current UV lining service specifically follows a workflow of CCTV diagnosis, cleaning and preparation, liner installation, UV curing and final verification. :contentReference[oaicite:2]{index=2}
